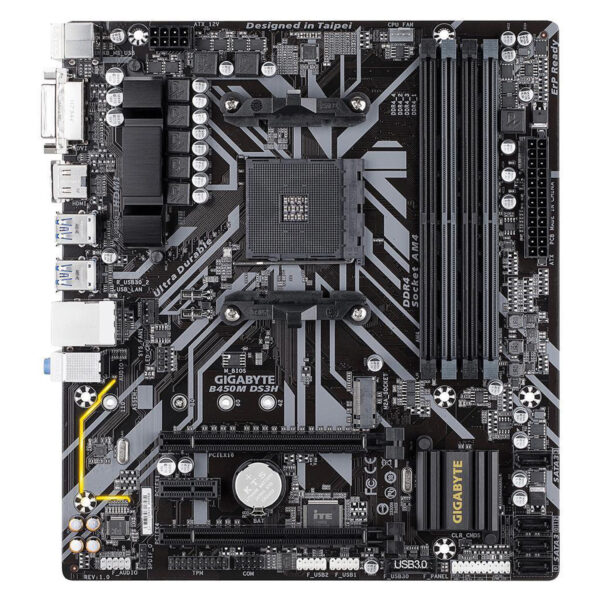

Gigabyte B450M DS3H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Brand

GIGABYTE

Model

B450M DS3H

Supported CPU

CPU Socket Type

AM4

CPU Type

AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics processors
AMD Ryzen 1st Generation processors

Chipsets

Chipset

AMD B450

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* The PCIEX16 slot conforms to PCI Express 3.0 standard.
* Actual support may vary by CPU.

PCI Express 2.0 x16

1 x PCI Express x16 slot, running at x4 (PCIEX4)

PCI Express x1

1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
Maximum shared memory of 2GB* Actual support may vary by CPU.

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

Onboard LAN

LAN Chipset

Realtek GbE LAN chip

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.1

4 x USB 3.1 Gen 1 ports

USB 1.1/2.0

4 x USB 2.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

Other Connectors

1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x Trusted Platform Module (TPM) header (2×10-pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Physical Spec

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions (W x L)

9.6″ x 8.5″

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features

Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
