Description
| Brand | ASUS |
|---|---|

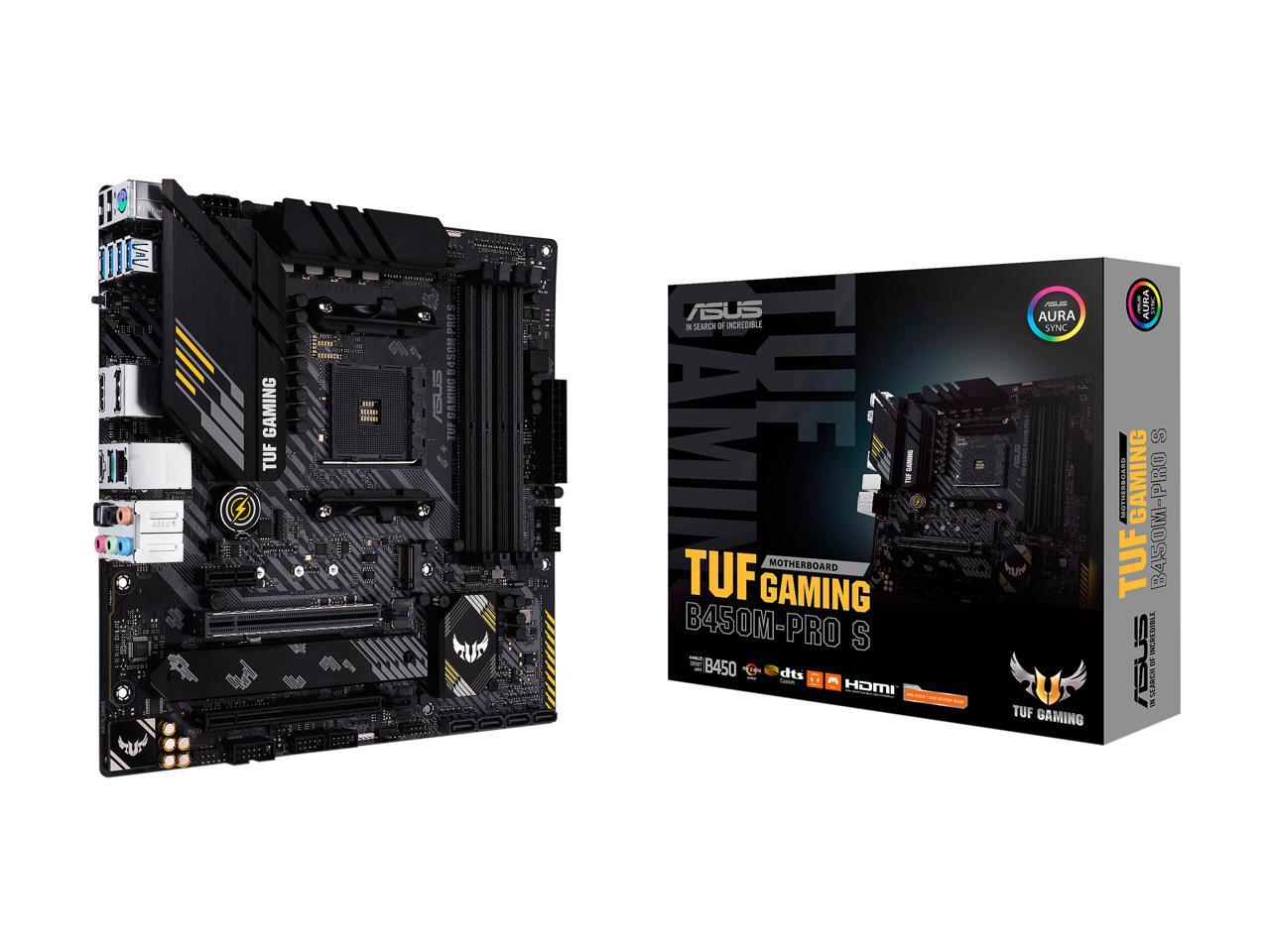

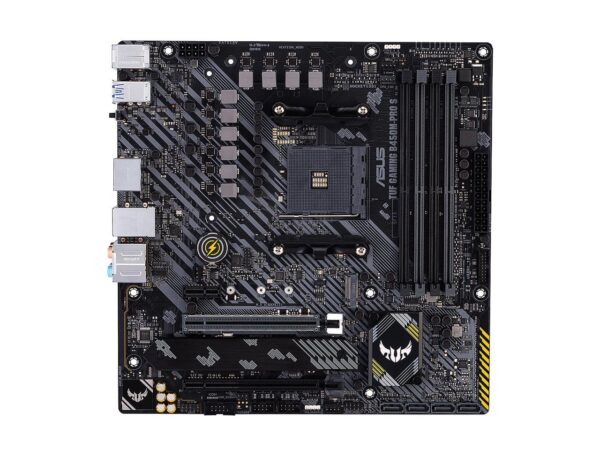

| Model | TUF GAMING B450M-PRO S |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports 3rd / 2nd / 1st Gen AMD Ryzen Processors Supports 2nd / 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD Athlon with Radeon Vega Graphics Processors* Refer to www.asus.com for CPU support list. |
| Chipset | AMD B450 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(OC) / 3533(OC) / 3466(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*
* Actual support may vary by CPU. |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 *
* PCIEX16_2 shares bandwidth with M.2_2. When PCIEX16_2 runs, M.2_2 will be disabled. |
| PCI Express x16 | None |
| PCI Express x1 | 1 x PCI Express 2.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode) AMD Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD B450 chipset: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 2.0 x4)* * M.2_2 shares bandwidth with PCIEX16_2. When M.2_2 runs, PCIEX16_2 will be disabled. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC S1200A Surround Sound High Definition Audio CODEC |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |

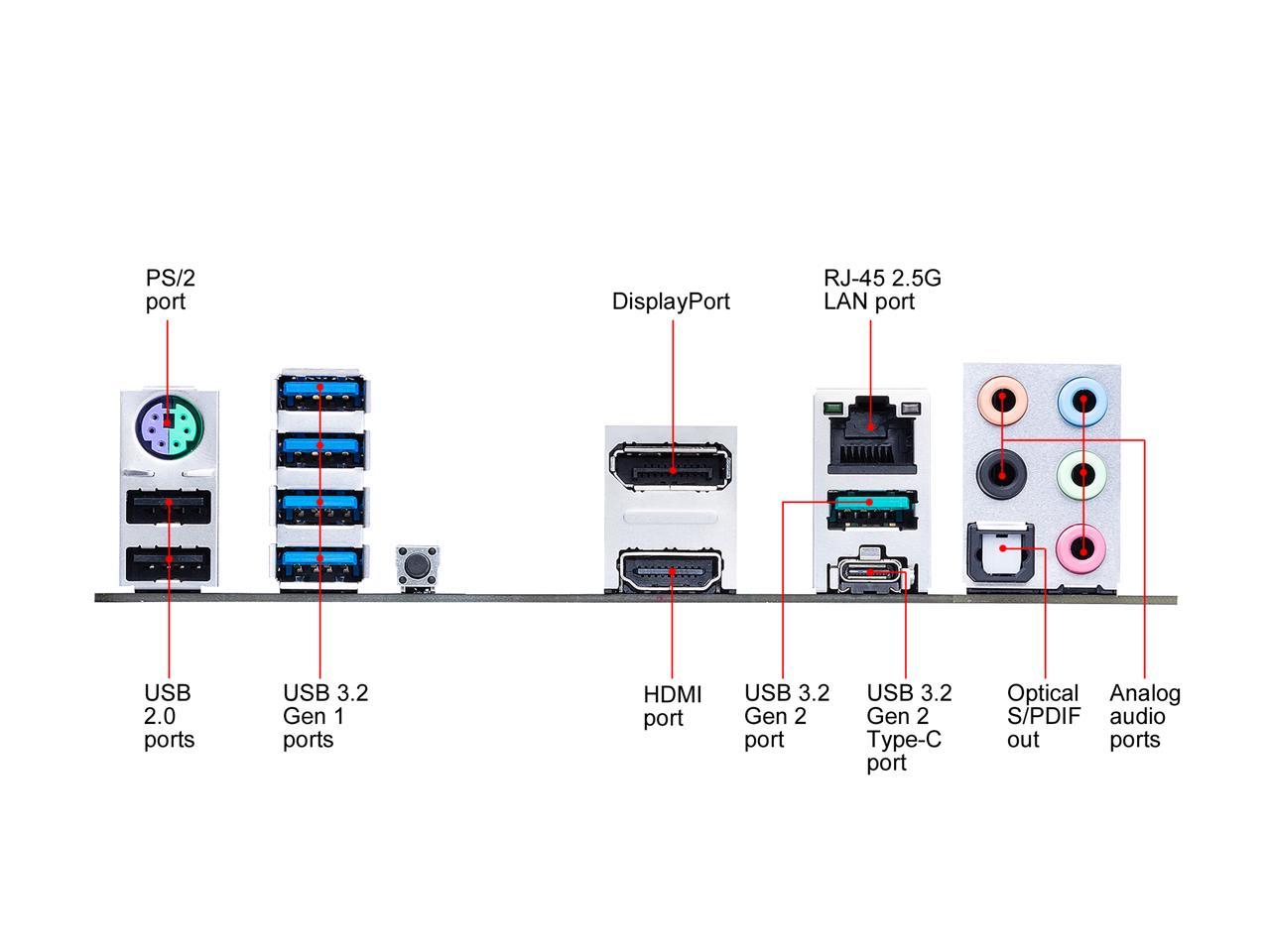

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (2.5G) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack Button(s) |
|---|---|
| HDMI | 1 x HDMI |
| USB 3.0 | 3 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x SPI TPM header 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 243.84 mm x 243.84 mm |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors |
| Windows 11 | Supported |
|---|
| Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX TechnologySoftware Features: ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – AI Noise-Canceling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Special Features: BIOS: Manageability: Operating System: |
|---|
| Package Contents | Accessories: User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) |
|---|
