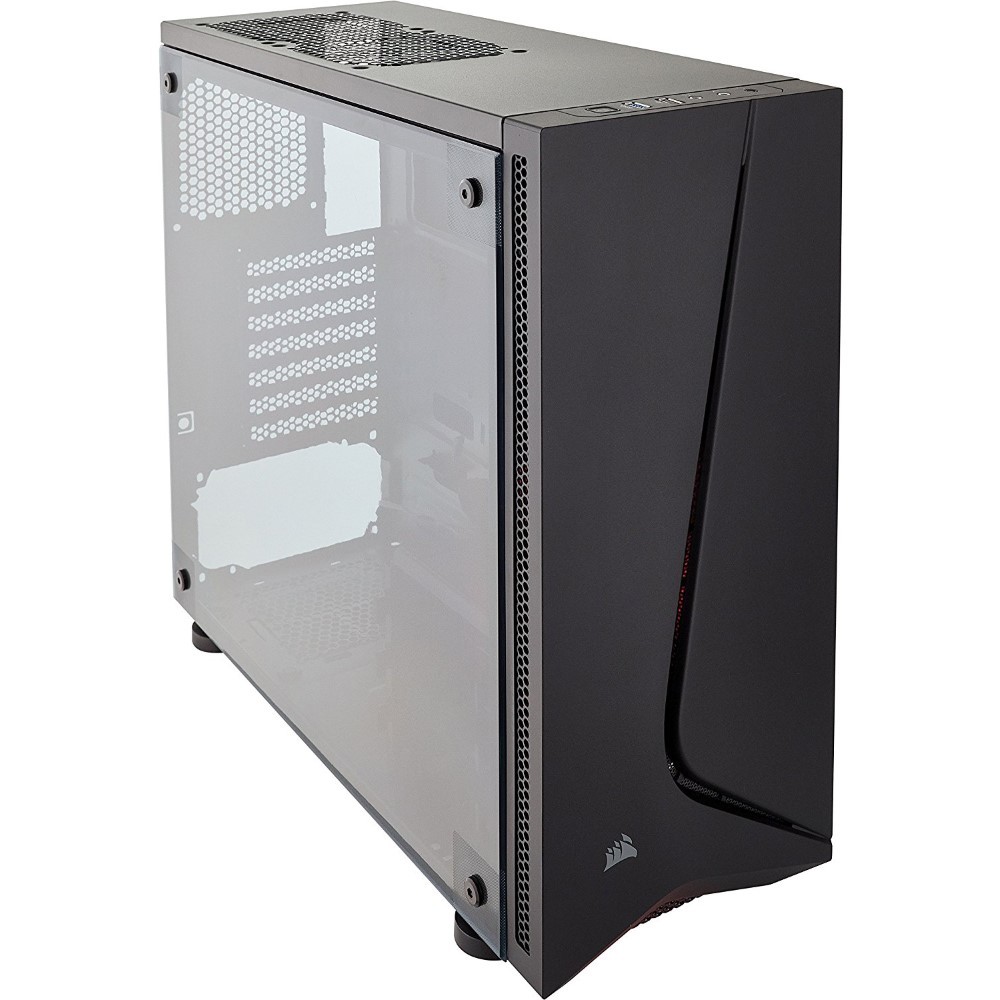

|Series||Carbide Series SPEC-05|
|Type||ATX Mid Tower|
|Case Material||Steel, Plastic, Acrylic Window Side Panel|
|With Power Supply||No|
|Power Supply Mounted||Bottom|
|Motherboard Compatibility||Micro ATX / ATX / Mini-ITX|
|Side Panel Window||Acrylic Window Side Panel|
|Internal 3.5″ Drive Bays||3|
|Internal 2.5″ Drive Bays||2|
|Front Ports||1 x USB 2.0 / 1 x USB 3.0 / 1 x Headphone / 1 x Mic|
|Fan Options||Front: 3 x 120mm (1 x 120mm fan included) or 2 x 140mm fan
Top: 2 x 120mm / 140mm fan
Rear: 1 x 120mm fan
|Radiator Options||Front – Up to 240mm / Rear – Up to 120mm|
|Max GPU Length||370 mm|
|Max CPU Cooler Height||150 mm|
|Max PSU Length||180 mm|
|Dimensions (H x W x D)||19.02″ x 7.83″ x 17.05″|
|Features||Minimalist Exterior Design with Edge-to-Edge Side Panel Window: The asymmetrical, smooth-edged design adds bold styling to your build.
Room up to for Five 120mm Fans: Tons of room for excellent cooling potential with one 120mm front fan pre-installed.
Expansive Storage Space: Easy-to-use mounts for up to three HDD’s and two SSD’s.
Clean and Modern Front Panel: Featuring a high-speed USB 3.0 port and additional ports for all modern connections.
Cable Routing Cutouts and Tie Downs: Neatly hide your cables behind the motherboard tray to keep your build looking tidy and out of the airflow path for improved cooling.
Removable, Built-in Dust Filters: Added layer of protection helps keep your PC clean and your components running longer.
|Package Content||Carbide Series SPEC-05 Mid-Tower Gaming Case
Quick Start Guide
