Description
| Brand | CORSAIR |
|---|---|

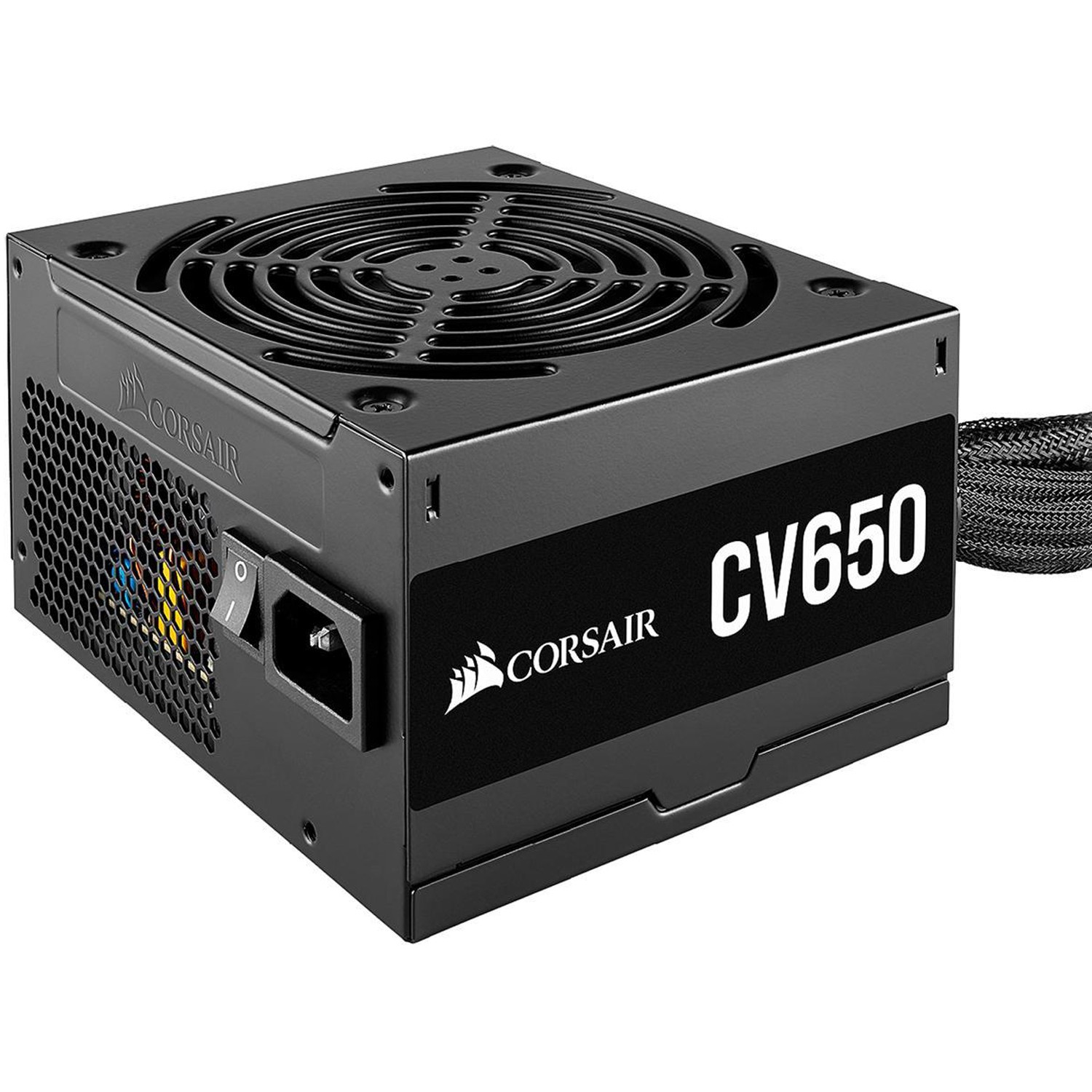

| Series | CV Series CV650 |
| Model | CP-9020211-NA |
| Type | ATX12V |
|---|---|
| Maximum Power | 650W |
| Fans | 1 x 120mm Thermally Controlled Low-noise Cooling Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 7 |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 47 – 63 Hz |
| Input Current | 10A – 5A |
| Output | +3.3V@24A, +5V@20A, +12V@52A, -12V@0.3A, +5VSB@3A |
| MTBF | >100,000 Hours |
| Dimensions | 3.39″ x 5.91″ x 4.92″ |
| Max PSU Length | 125 mm |
| Weight | 4.19 lbs. |
| Connectors | 1 x ATX (24-PIN) 1 x EPS/ATX12V (8-PIN) (4+4) 2 x PCI-E (8-PIN) (6+2) 7 x SATA 2 x Peripheral 1 x Floppy |
|---|---|
| Features | 80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs
Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases Black Sleeving and Casing: Black sleeved cables and a black powder-coated casing seamlessly fits your PC’s style Three-Year Warranty: Your guarantee of reliable operation, backed by the CORSAIR global technical support team |
| Package Content | CV Series ATX Power Supply AC Power Cord Mounting Screws Warranty Documentation |
