CORSAIR CX-M Series CX750M 750W 80 PLUS BRONZE Haswell Ready ATX12V & EPS12V Semi-modular Power Supply


  • ATX12V v2.3
  • Semi-modular
  • 80 PLUS BRONZE Certified
  • 100 – 240 V 47 – 63 Hz
  • +3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
  • ATX12V & EPS12V Power Supply
  • ErP Lot 6 80 Plus Bronze
  • 4th generation Intel Core processor Ready


Series CX series
Model CX750M
Type ATX12V v2.3
Maximum Power  750 W
Fans  1 x 135mm Sleeve Bearing Fan
PFC  Active
Main Connector  24Pin
+12V Rails  Single
PCI-Express Connector  4 x 6+2-Pin
SATA Power Connector  8
SLI  SLI Ready
Haswell Support Yes
CrossFire  CrossFire Ready
Modular  Semi-Modular
Efficiency  Up to 85%
Energy-Efficient 80 PLUS BRONZE Certified
Over Voltage Protection  Yes
Input Voltage 100 – 240 V
Input Frequency Range 47 – 63 Hz
Input Current 12 – 6A
Output +3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
MTBF  100,000 hours
Max PSU Length 160 mm
Connectors 1 x 24-Pin main connector
1 x 8-Pin EPS12V CPU
4 x PCI-E
8 x SATA
6 x Peripheral
2 x Floppy
Features Up to 85% energy efficiency means less heat generation and lower energy bills.

0.99 Active Power Factor Correction provides clean and reliable power.

Universal AC input from 90 – 264V.

A dedicated single +12V rail offers maximum compatibility with the latest components.

Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Extra long fully-sleeved cables support full tower chassis.

ErP Lot 6 Compliant.

Dimension & Weight

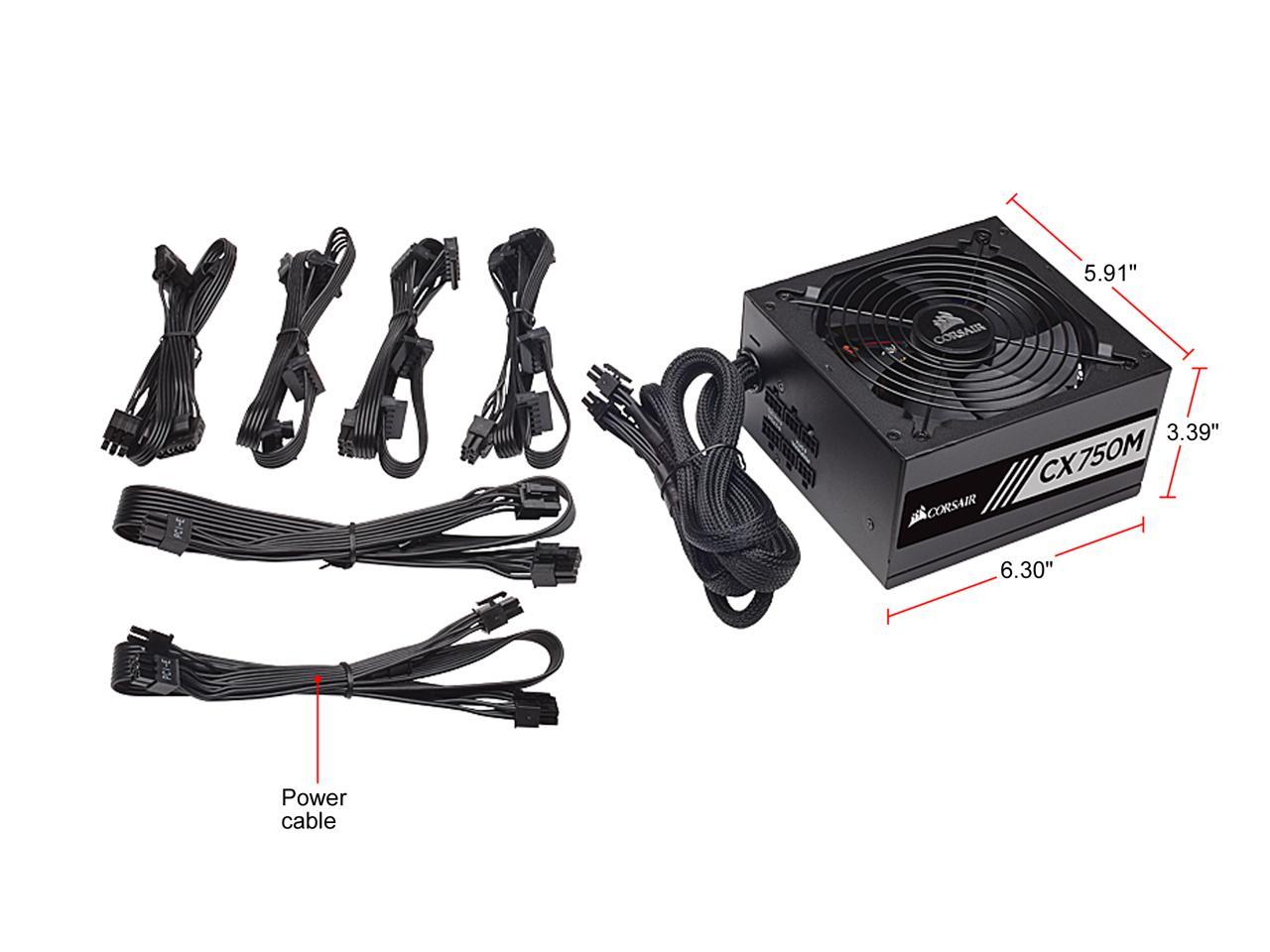

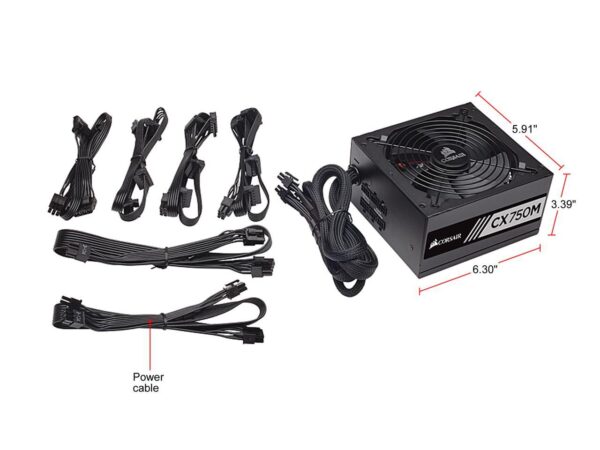

Dimensions 3.39″ x 5.91″ x 6.30″
Weight 7.80 lbs.
