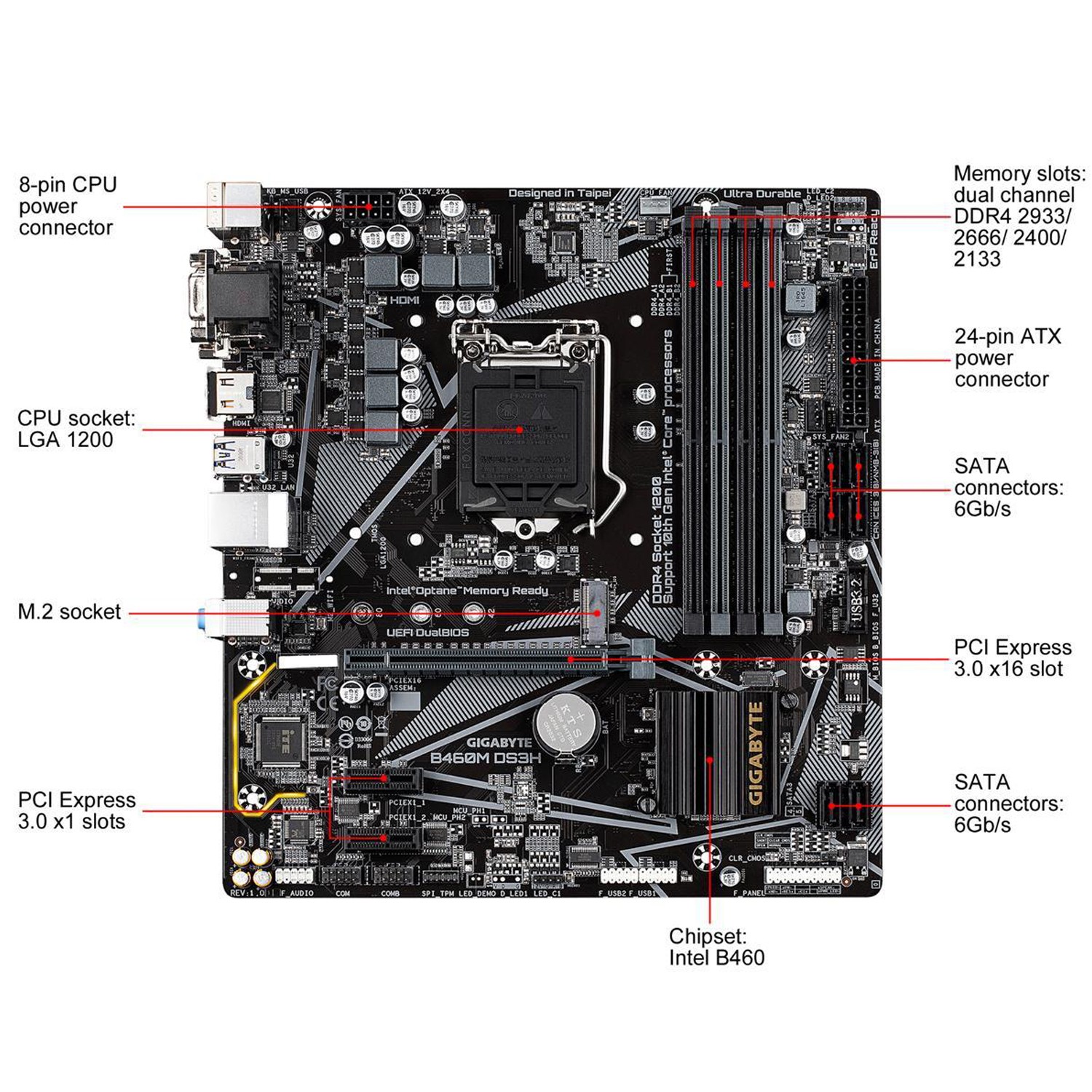

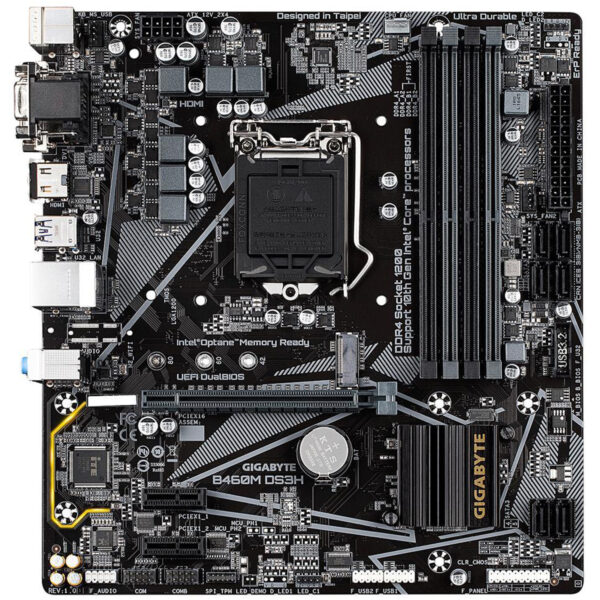

GIGABYTE B460M DS3H LGA 1200 Intel B460 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 1

$149.99

Categories: ,

Description

Brand GIGABYTE
Series Ultra Durable
Model B460M DS3H
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Support for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1200 package
Chipsets
Chipset  Intel B460
Onboard Video
Onboard Video Chipset  Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Memory
Number of Memory Slots 4×288pin
Memory Standard Intel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/ Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
PCI Express x1 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
2 x system fan headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 9.6″ x 8.9″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features I/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Ambient LED
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
