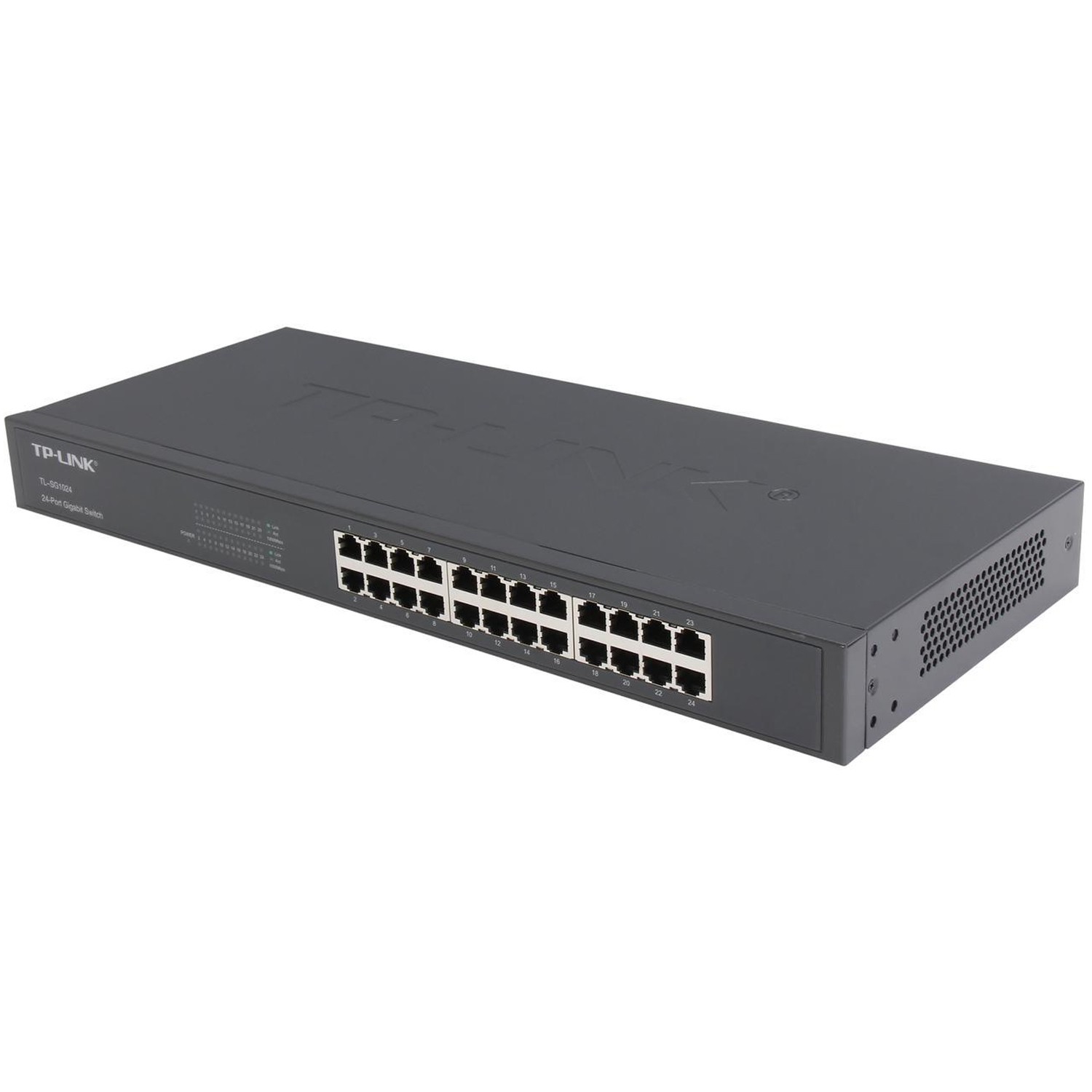

TP-LINK TL-SG1024D 10/100/1000Mbps Unmanaged 24-Port Gigabit Desktop Switch

Brand

TP-Link

Model

TL-SG1024D

Format & Standards

Format

Desktop/Rackmount

Standards

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Network Management Type

Unmanaged

Ports & Interface

Uplink Ports

None

Primary Ports

24 x RJ45

Primary Port Speed

10/100/1000Mbps

Data Transmission

Switching Method

Store and Forward

Jumbo Frames

Yes

Details

Protocols

TCP/IP

PoE

No

Layer

Layer 2 Only

Power

100~240VAC, 50/60Hz

Features

Features

Innovative energy-efficient technology saves power up to 40%

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

48Gbps Switching Capacity

10K Jumbo frame improves performance of large data transfers

Auto-MDI/MDIX eliminates the need for crossover cables

Supports MAC address auto-learning and auto-aging

Store and forward Switching scheme

Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.

Desktop and Rack-mountable design

Plug and Play design simplifies installation

Dimensions & Weight

Dimensions

294.64 mm x 180.34 mm x 43.18 mm

Weight

5.1

Environmental

Temperature

0ºC to 40ºC (32ºF to 104ºF)

Humidity

10% – 90%, Non-condensing

Packaging

Package Contents

24-Port Gigabit Desktop/Rackmount Switch
Power Cord
User Guide
