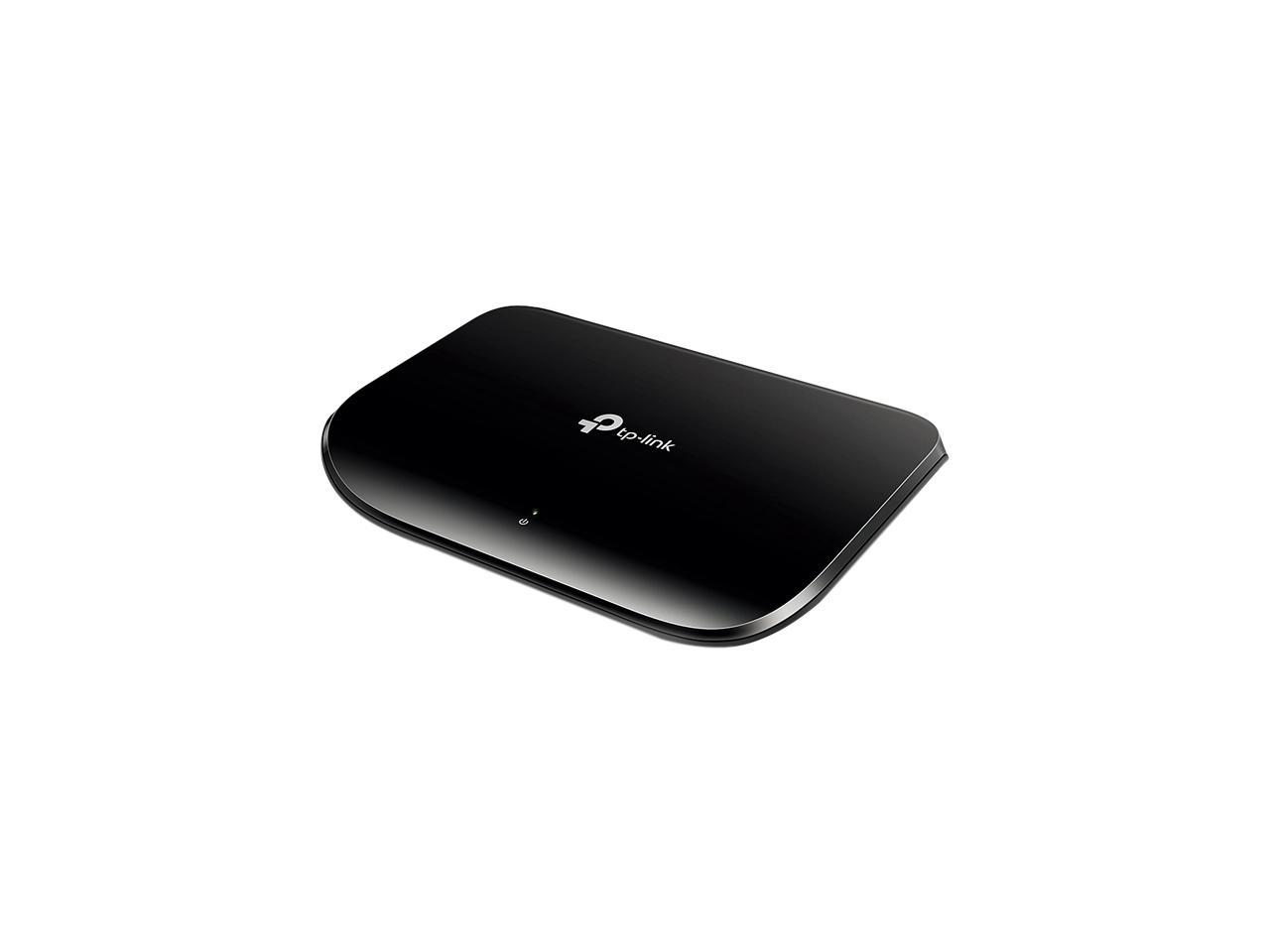

TP-LINK TL-SG1005D 10/100/1000Mbps Unmanaged 5-Port Gigabit Desktop Switch

$39.99

  • PLUG-AND-PLAY – Easy setup with no configuration or no software needed
  • ETHERNET SPLITTER – Connectivity to your router or modem for additional wired connections (laptop, gaming console, printer, etc)
  • 5 Port GIGABIT ETHERNET – 5 10/100/1000 Mbps Gigabit auto-negotiation RJ45 ports greatly expand network capacity
  • COST EFFECTIVE – Fanless Quiet Design, Desktop design
  • RELIABLE – IEEE 802.3x flow control provides reliable data transfer. Power Consumption – Maximum: 3W (220V/50Hz) . External Power Supply – External Power Adapter (Output: 9VDC / 0.6A)
  • UP to 80% Power Saving – Automatically adjusts power consumption according to the link status and cable length
  • AUTO-NEGOTIATION – Supports Auto-MDI/MDIX, eliminating the need for crossover cables
  • 2-YEAR WARRANTY and unlimited 24/7 technical support for FREE
Categories: ,

Description

Brand
TP-Link
Model
TL-SG1005D

Format & Standards

Format
Desktop
Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management Type
Unmanaged

Ports & Interface

Primary Ports
5 x RJ45
Primary Port Speed
10/100/1000Mbps

Details

Protocols
TCP/IP
Power
Power Consumption Maximum: 3W (220V/50Hz)
External Power Supply External Power Adapter: (Output: 9VDC / 0.6A)

Features

Features
5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 85%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required

Dimensions & Weight

Dimensions
22.86 mm x 139.70 mm x 88.90 mm
Weight
340.19 g

Environmental

Temperature
Operating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F)
Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F)
Humidity
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

Packaging

Package Contents
5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
